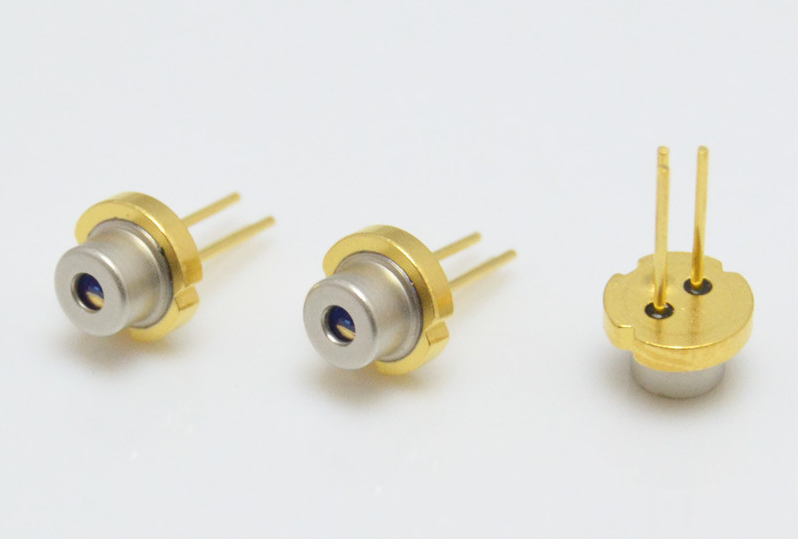

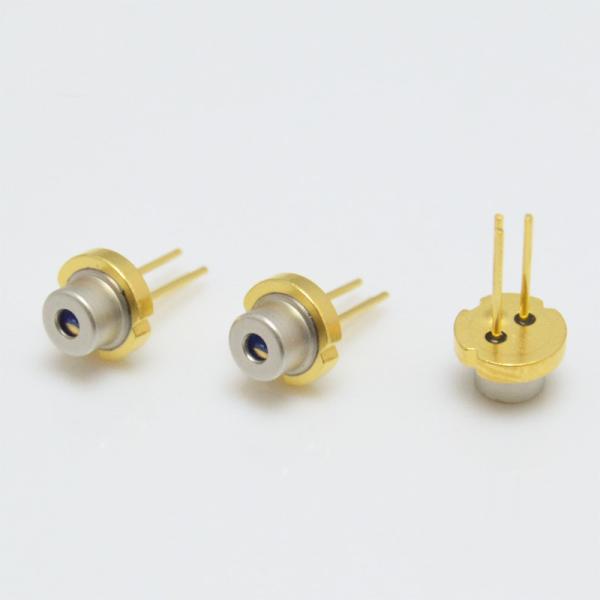

UV 375nm 200mw Purple Laser Diode TO5.6mm Package for Medical

Product Categories

XINLAND LASER CO.,LTD

Contact Now

Name: UV 375nm 200mw Purple Laser Diode TO56mm Package for Medical
Brand: Xinland
Price: 1 USD

Brand Name : Xinland

Model Number : Laser Diode

Certification : CE

Place of Origin : China

MOQ : 1pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs per months

Delivery Time : 5-8 work days

Packaging Details : 100pcs/fanti-static box

Name : Laser Diode

Laser color : Purple

Wavelength : 375nm

Power : 200mw

Operating Voltage(TyP.) : 4.5V

Operating Current (TyP.) : 320mA

Contact Now

UV 375nm 200mw Purple Laser Diode TO5.6mm Package for Medical

Features:
375nm High Output Power

5.6mm Package

Multimode Laser Diode
Applications:
Medical Laser Treatment

Printing
Others

Specifications:

PARAMETER	SYMBOL	VALUE	UNIT
Reverse Voltage		2.0	V
Operating Temperature	Top	+15~+30	℃
Storage Temperature	Tstg	-40~+85
Lead soldering temperature (10 sec.)	Tis	260	℃

Specifications	XLD-375-200m-1
	Min	Type	Max
Center Wavelength@25℃	375nm±10nm
Spectral Width (FWHM)	2.0nm
Output Power (CW)	----	200mW
Beam Divergence (FWHM)	----	35°⊥x 15°//	45°⊥x 25°//
Threshold Current (Typ.)	----	200mA	300mA
Operating Current (Typ.)		320mA	400mA
Operating Voltage	----	4.5V	6.0V
Slope Efficiency	----	1.3mW/mA	----
Recommended Operating Temperature	25 ℃
Package Style	5.6mm

UV 375nm 200mw Purple Laser Diode TO5.6mm Package for Medical

Product Tags:

UV 380nm Led Laser Diode
